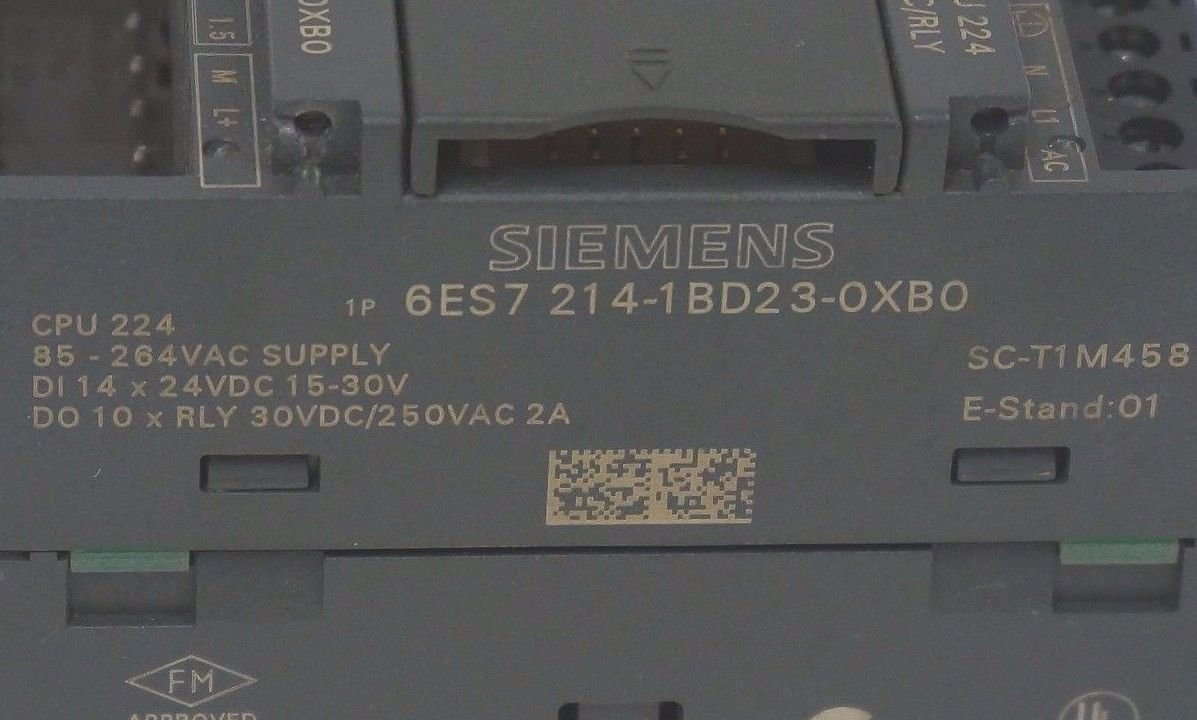

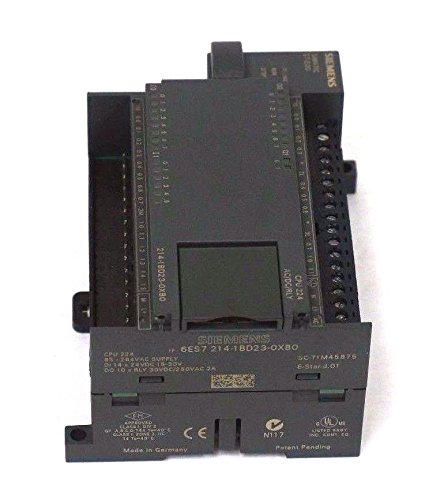

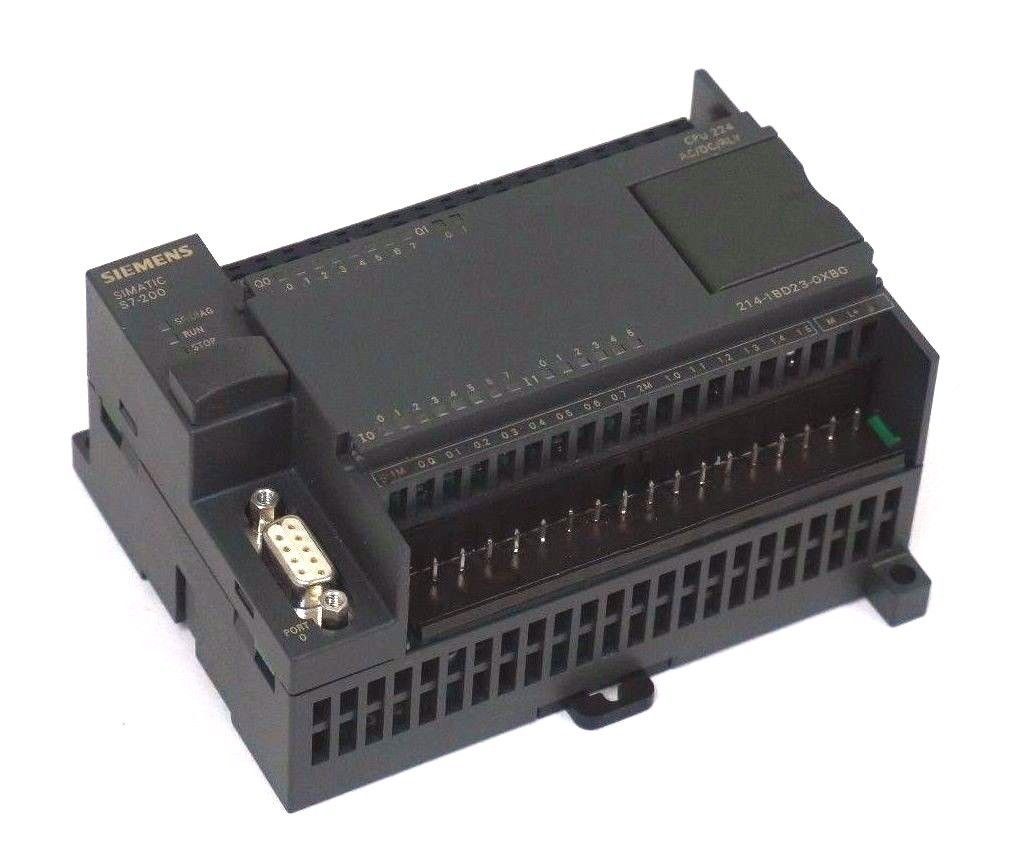

Original Siemens SIMATIC CPU 224 AC/DC/Relay 6ES7214-1BD23-0XB0 PLC Controller (100-230V AC) - Industrial Automation & Control System for Manufacturing & Machinery

Product Description

·Programming software with Windows interface · ·Instructions for quick access to PLC technology ·Own S7-200 network with PPI protocol Analogue potentiometer: 2 · Clock (type): Real-time clock · Counter: 6 (30 kHz) · Data storage: 8 kB · Digital inputs: 14 (24 V/DC) · Digital outputs: 10 DA relay · Dimensions: (W x H x D) 120.5 x 80 x 62 mm · Interfaces: 1 x RS 485 · Manufacturer part no.: 6ES7214-1BD23-0XB0 · Number of expansion modules: Max 7 · Operating voltage: AC 100 - 230 V · Program memory: 8/12 kB · Protection type: IP20 · Supported protocols: PPI and MPI slave or freeport · Type (manufacturer type): CPU 224 AC/DC/Relais The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future. Application areas e.g.: Small and special machine construction: Packaging, encompassing and winding machines · Food industry: Kneading, cutting machines, mixing granulators · Laboratory: Laboratory mixers, heating cabinets, vacuum pumps, suction equipment. The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
