Shuttle XPC Cube SH570R6-PLUS Mini Barebone PC - Intel H570 Chipset, Supports 125W 11th/10th Gen Intel Core i7/i5/i3 (Rocket Lake/Comet Lake) - No RAM/Storage/CPU/OS - 500W 80 Plus Gold PSU - Perfect for Home Office, Gaming, and Compact Workstation Builds
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:35405069
Product Description

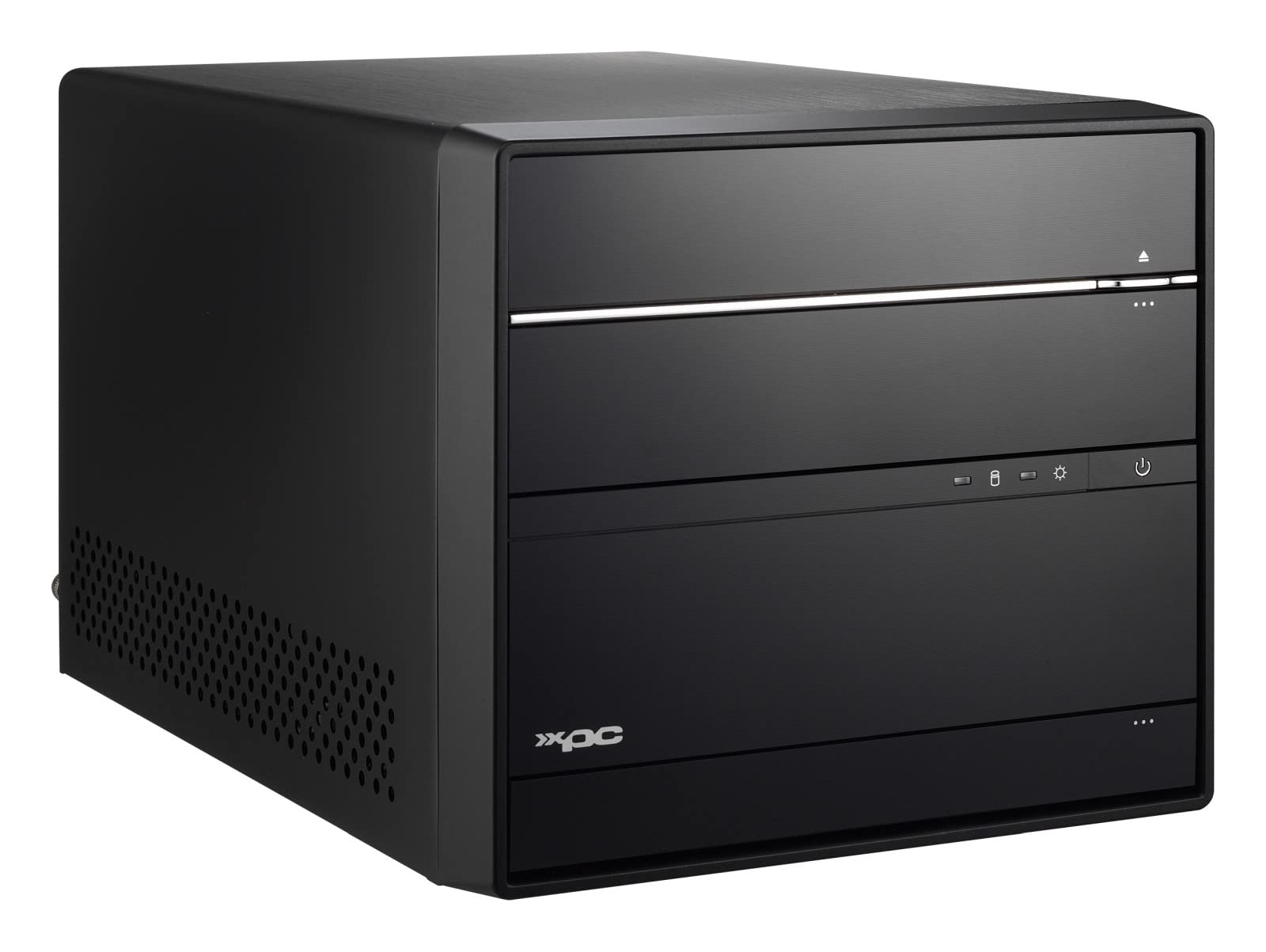

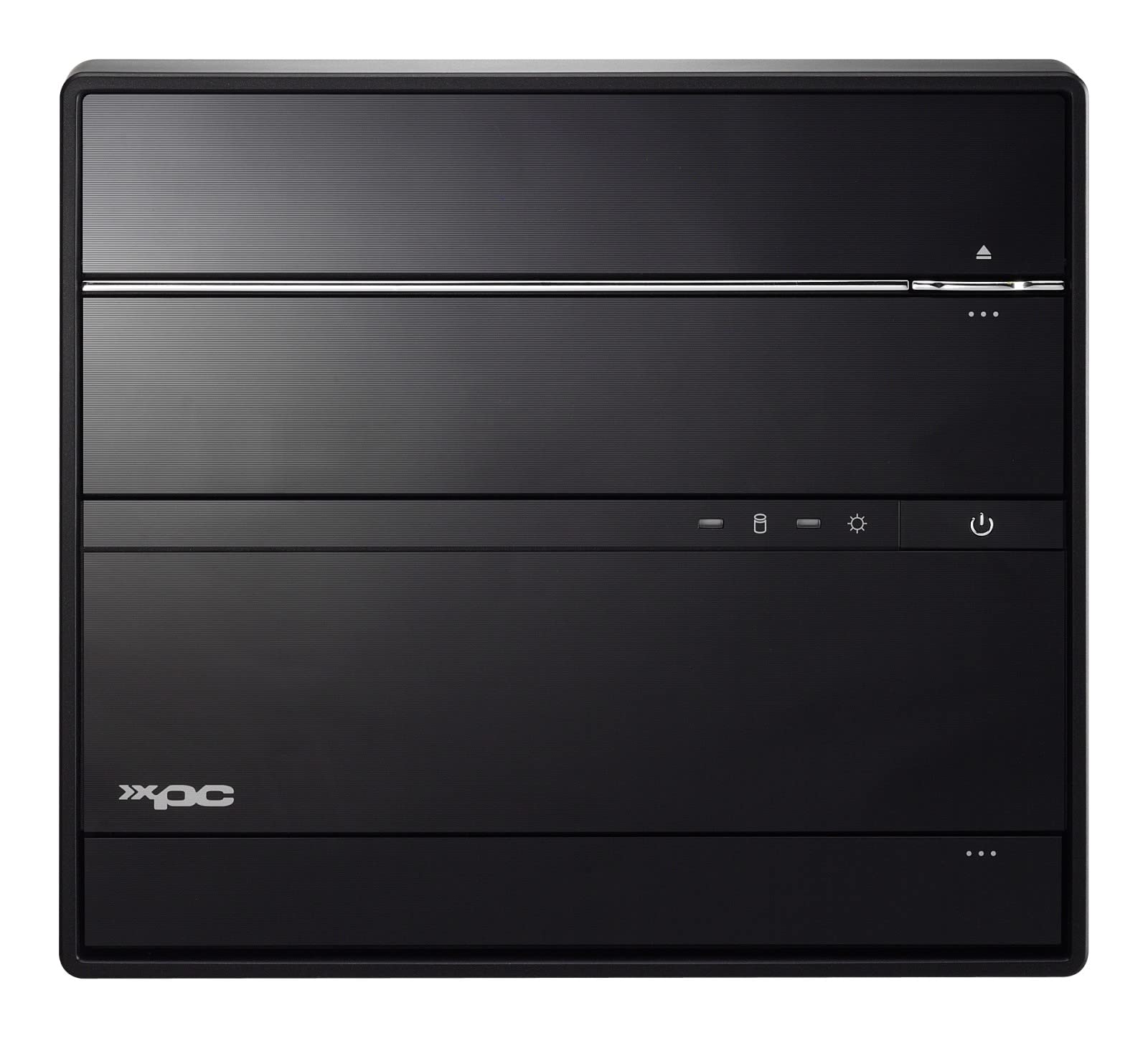

The Shuttle XPC Barebone SH570R6 Plus shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus an optical drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally
Product Features
Supports Intel 11th/10th Generation Rocket Lake/Comet Lake i3/i5/i7/i9 Pentium/Celeron 125W processors with UHD Graphics No RAM no HDD/SSD No OS Compatible with Windows 11/10 (64-bit) and Linux (64-bit)
Does not support the Unlock-function of Intel K-Series processors. Intel processors without integrated graphics can be identified by their model name ending on "F". When using this CPU, a graphics card is required.

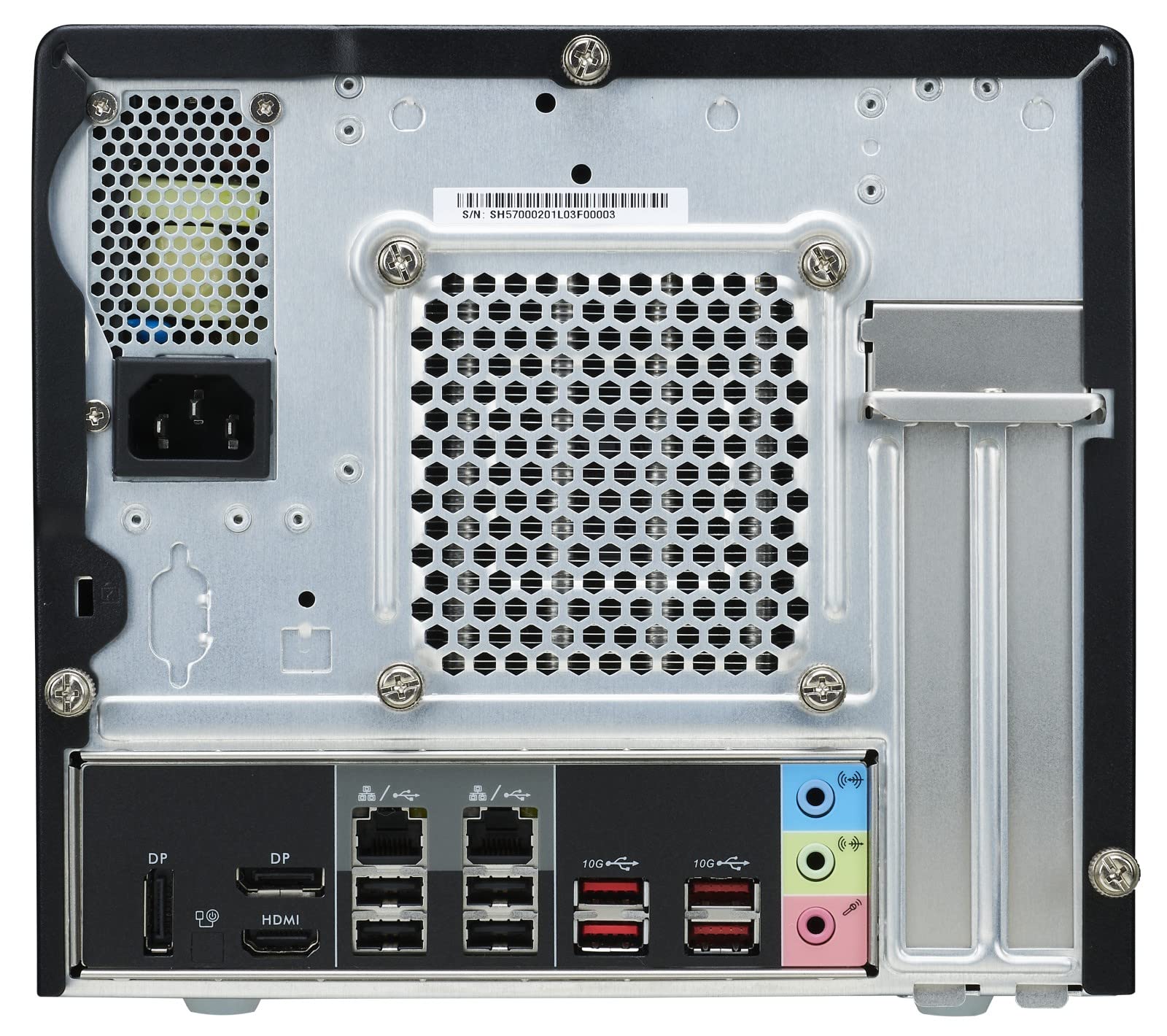

4x 288 pin dual Channel DDR4 DIMM Slots 32GB per DIMM (Max 128GB). The maximum DDR4 clock frequency depends on the processor type used. Gen. 11 "Rocket Lake" supports DDR4-3200. Gen. 10 "Comet Lake" Core i7/i9 supports DDR4-2933. Other "Comet Lake" support DDR4-2666. Dual Intel Gigabit LAN 1x HDMI 2x Display Port Triple video output that support four of 4K UHD displays at 2160P/60 Hz frame rate. Support RAID 0 1 5 10. 10x USB. 1 x 5 25" ODD bay 2x 3 5" HDD bay. M.2 2280 slot.
1x PCI-Express x16 v4 1x PCI-Express x4 v3 slot (open-ended). Supports dual-slot (double-width) graphics cards (occupies the second PCI-Express slot). The maximum size acceptable for display cards is 273 x 98 x 38 mm. Graphics power connector is 6 pins.
Manufacturer 3-Year Warranty and free lifetime technical support
