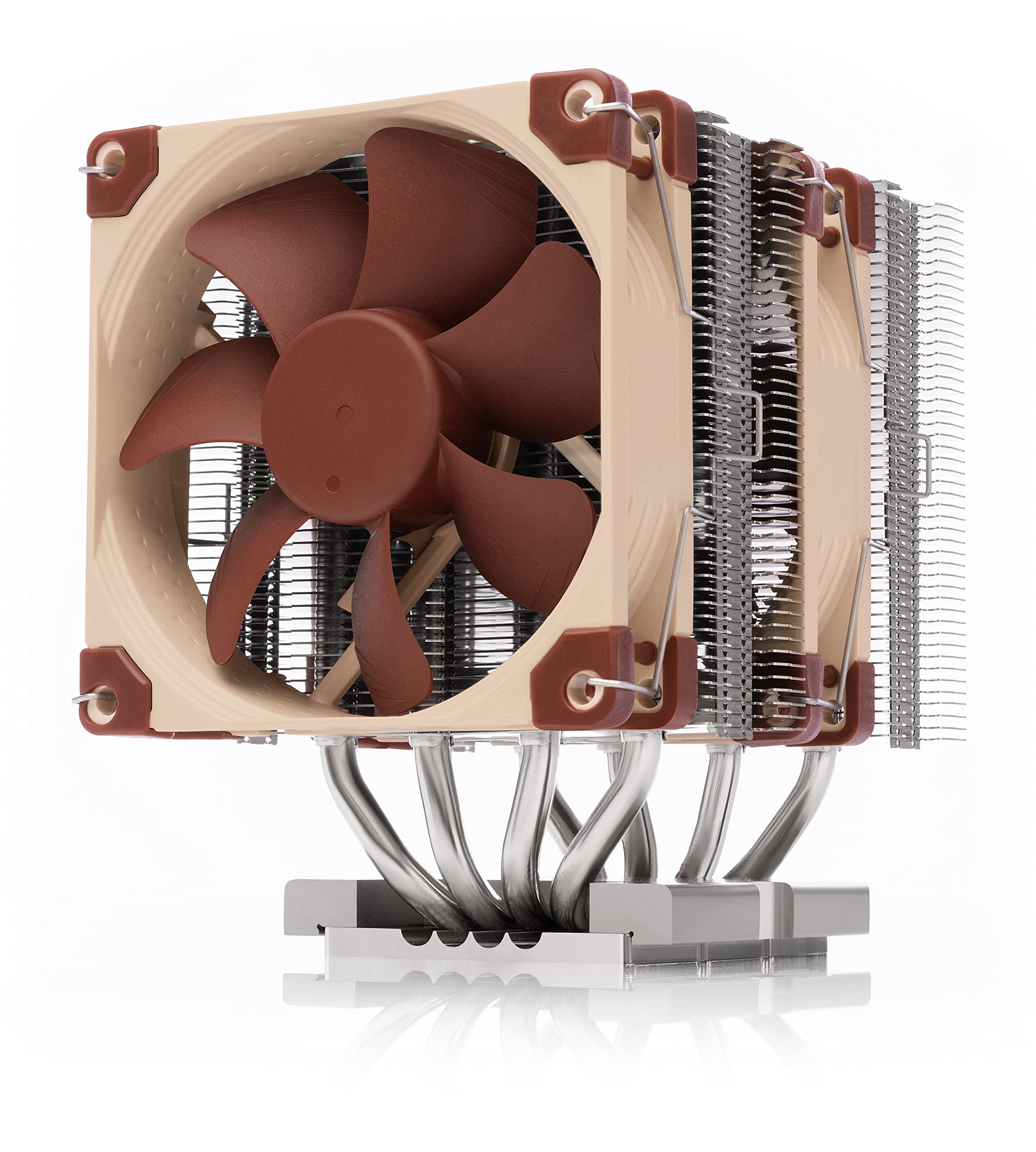

Noctua NH-D9 DX-4189 4U Premium CPU Cooler for Intel Xeon LGA4189 - High Performance Quiet Cooling Solution for Servers & Workstations (Brown)

Product Description

Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-D9 DX-4189 4U features a larger, custom-designed contact surface for LGA4189 platforms. Based on the proven, 92mm size NH-D9L heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans (high-efficiency 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. The NH-D9’s direction of airflow is parallel to the long axis of the LGA4189 socket, so it is ideal for server builds where the cooler’s fans should work in tandem with the airflow inside the chassis, or for workstation builds where this orientation is required for having the cooler exhaust towards the top of the case. Topped off with the professional SecuFirm2 mounting system and pre-applied NT-H1 thermal compound, the NH-D9 DX-4189 4U forms a complete premium quality package for quietly cooling LGA4189 based Xeon workstations and servers. Enlarged contact surface At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA4189-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins. Dual NF-A9 PWM fans The NH-D9 DX-4189 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-4189. Pre-applied NT-H1 thermal compound Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators! LGA4189-4 (P4) CPU carrier frame The scope of delivery includes an LGA4189-4 (P4) type CPU carrier frame for Intel Ice Lake-SP and Ice Lake-64L based processors (Whitley platform). However, the heatsink’s SecuFirm2 mounting system also supports P5 type LGA4189 sockets (LGA4189-5) for Intel Cooper Lake based processors. CPU carrier frames for LGA4189-5 are available from Noctua customer support. Read more Measurements Height (without fan): 134 mm Width (without fan): 95 mm Depth (without fan): 95 mm Height (with fan): 134 mm Width (with fan): 95 mm Depth (with fan): 120 mm Weight (without fan): 584 g Weight (with fan/s): 769 g Materials Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating Cooler Specification Socket compatibility Please note that the NH-D9 DX-4189 4U is a dedicated version for the Intel LGA4189 socket. Due to its customised larger base, it cannot be used on most other sockets and is incompatible with Noctua’s standard mounting kits. Scope of delivery 2x NF-A9 HS-PWM premium fan NT-H1 high-grade thermal compound (pre-applied) SecuFirm2 mounting kit for LGA4189 CPU carrier frame for LGA4189-4 (P4) NM-SMT5 Torx T30 mounting tool NM-SMT3 mounting tool for mounting bracket installation Noctua Metal Case-Badge Read more Customised for LGA4189 The DX-4189 line coolers are dedicated solutions for Intel’s professional LGA4189 platform (Whitley), which makes them an ideal fit for both Ice Lake-SP based 3rd generation Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze) and W-3300 series Xeon processors for workstations (Ice Lake-64L). Read more NH-D9L NH-D9DX i4 3U NH-D9 DX-3647 4U NH-D9 DX-4189 4U LGA2066, LGA2011-0 & LGA2011-3 ✓ ✓ X X LGA1700 ✓ upgrade kit available on request X X LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) ✓ with NM-i115x-1200 X X LGA775 & LGA1366 with NM-I3 X X X Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356 X ✓ X X Xeon LGA3647 X X ✓ X Xeon LGA4189 X X with NM-i4189 ✓ AM5 ✓ upgrade kit available on request X X AM4 ✓ upgrade kit available on request X X sTRX4, sWRX8 TR4, SP3 X X X X
