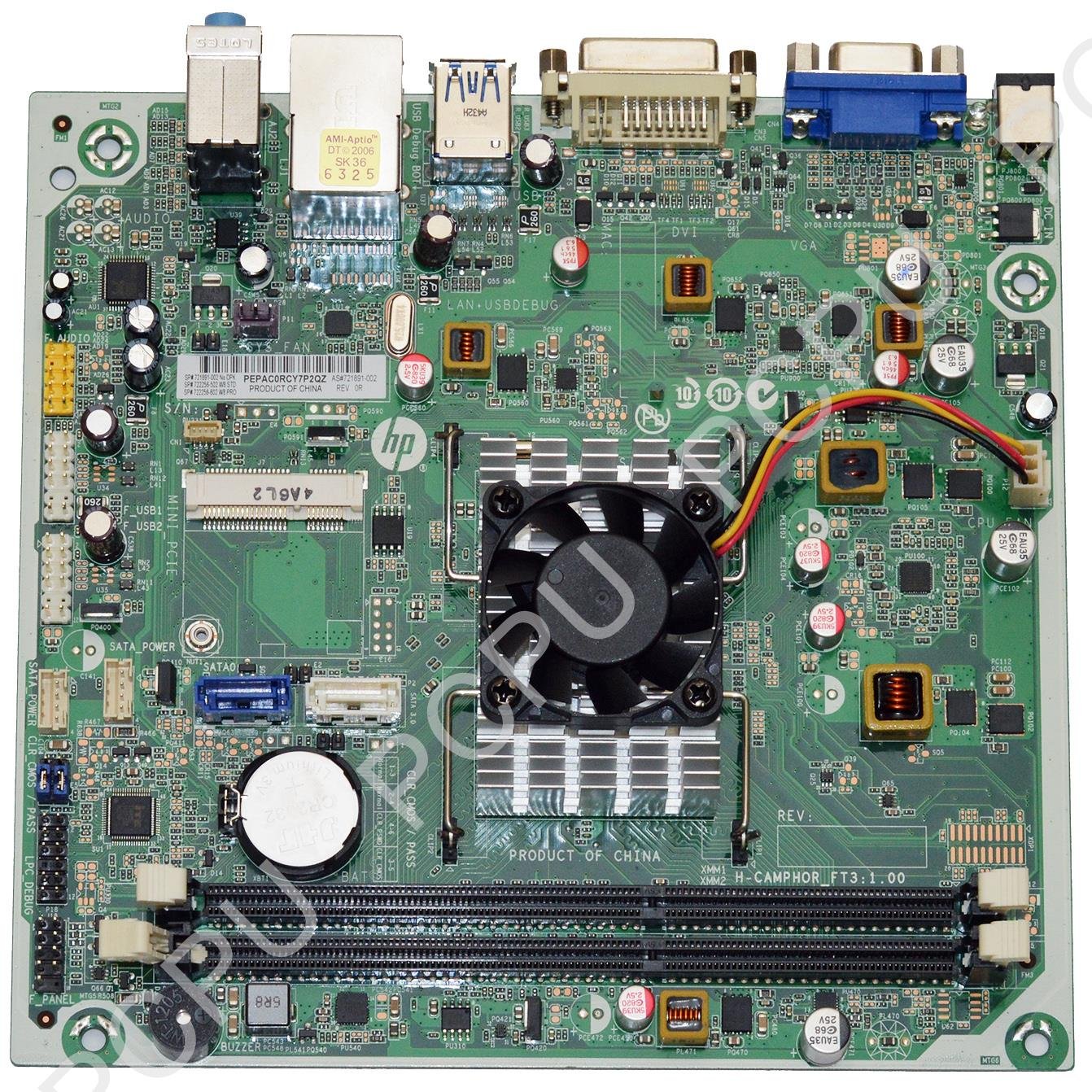

HP 110-216 Camphor Desktop Motherboard with AMD A6-5200 2.0GHz CPU (721891-002) - Perfect for Office Workstations & Home PC Upgrades

Product Description

Manufacturer: Foxconn HP/Compaq name: Camphor SSID: 2B05 Form Factor ITX 17.8 cm (7.0 inches) x 17.0 cm (6.7 inches) Chipset The chipset on this motherboard is combined with the processor into a single integrated circuit called System on a Chip (SoC). This technology combines the processor and chipset functionality into a single physical package. Processor upgrade information The motherboard supports the AMD Kabini A6-5200 APU only. The processor is not upgradable. Memory upgrade information Single channel memory architecture Two 240-pin DDR3 DIMM sockets Supports PC3-12800 (DDR3-1600) Supports 1 GB, 2 GB, 4 GB or 8 GB DIMMs Supports up to 16 GB (unbuffered) on 64-bit systems NOTE: Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system. Video AMD Radeon HD 8400 Integrated Graphics Audio Integrated Realtek ALC662 Audio Network LAN: 10-Base-T Expansion Slots One PCI Express half-length mini card socket I/O Ports and internal connectors Back I/O ports Figure : Back I/O ports DC input power VGA DVI-D USB 3.0: 2 USB 2.0: 2 LAN Audio: Line in Audio: Line out Audio: Microphone Internal Connectors 1x Front Audio 1x ONE TOUCH RESET 1x System FAN 1x WLAN Power LED 2x Dual-USB 2.0 2x SATA Power Supply 1x FDO 2x Serial ATA 1x ONE TOUCH RECOVERY 1x CLEAR CMOS and PASSWORD 1x LPC Debug 1x Front Panel 1x CPU FAN
